Mascar Bale Wrappers
Mascar 5100 Dual Wrapper
Dual-dispenser trailed turntable-wrapper with pickup and carry bale fork, auto-stop wrap counter and manual lever controls. ![]() Photograph for illustration purposes - standard specifications may not match those shown. |
||
FEATURES OF THE 5100 DUAL WRAPPER |
||
CHASSIS |
||
![]() |
|
|
![]() |
|
|
![]() |
|
|
![]() |
|
|
FILM DISPENSERS |
||
![]() |
|
|
![]() |
|
|
![]() |
|
|
![]() |
|
|
WRAPPING |
||
![]() |
|
|
![]() |
|
|
![]() |
|
|
![]() |
|
|
![]() |
|
|
GENERAL |
||
![]() |
|
|
![]() |
|
|
APPLICATIONS |
||
|
![]() |
![]() |
Cradle holds bale on discharge |
Vertical bale discharge |
![]() |
|

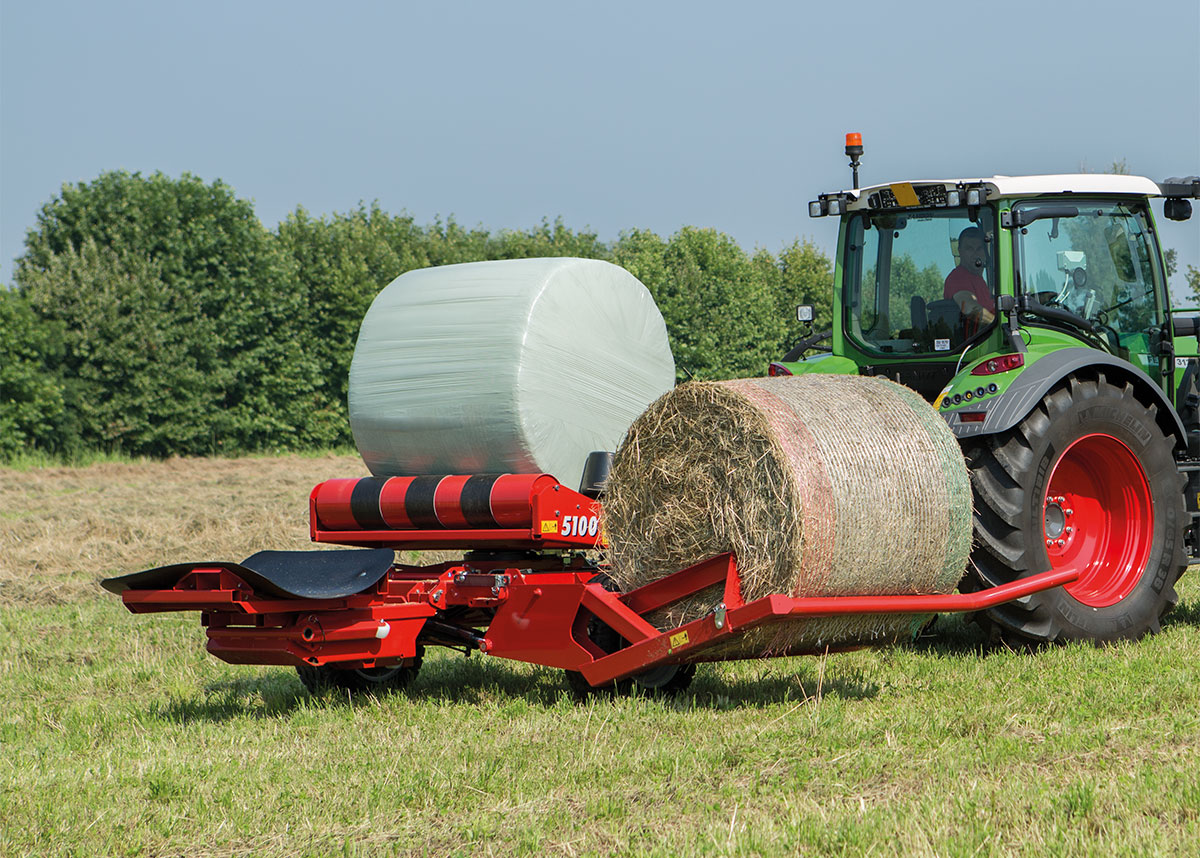

Two bale capacity - Wrap and pickup/carry the second bale |
|
SPECIFICATIONS |
5100 | |
BALER | |
Bale width (cm) | 120 |
Bale diameter (cm) | 120-160 |
Max bale weight (kg) | 1300 |
Max speed cradle rotation (rpm) | 30 |
FILM | |
Film cutting | Automatic |
Film release | Automatic |
Reel height (mm) | 750 |
Max reel diameter (mm) | 300 |
Film thickness (mm) | 0.025 – 0.035 |
Stretching (%) | 52 – 61 – 70 - 79 |
ELECTRIC SUPPLY | 12 V |
HYDRAULIC SYSTEM | |
Connection | 1 Single-acting, 1 free return |
Recommended/max oil capacity (l/min) | 20 / 30 |
Min/max oil inlet pressure (bar) | 150 / 180 |
Power requirements (kW) | 22 |
DIMENSIONS AND WEIGHTS | |
Tyres | 340/55-16 |
Min/max towing eye height (cm) | 37 – 107 |
Max weight on towing eye (kg) | 200 |
Towing eye measurements (mm) | Øi 35 – Øe 95 rotatable |
Net weight (full optional) (kg) | 1780 |
Max lenght (cm) | 535 |
Width (cm) | 243 |
Road (cm) | 209 |
Max height (cm) | 298 |
Rollers height (cm) | 123 |
Min ground clearance (cm) | 23 |
BROCHUREClick this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. |
|
